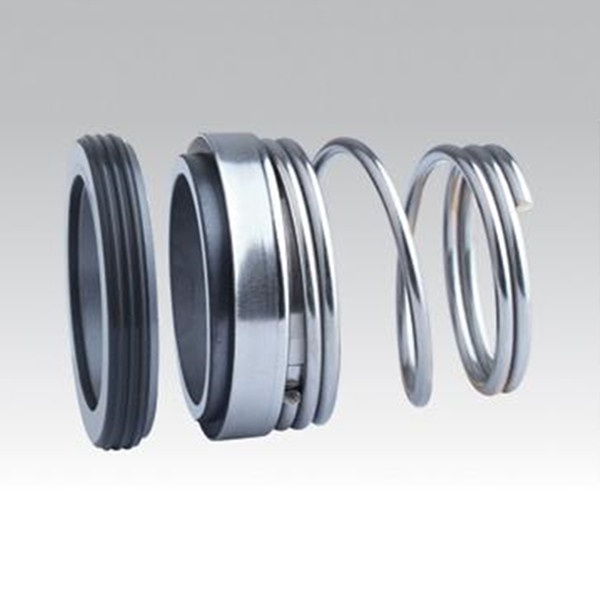

Product name : Mechanical Seal Burgmann Pump Mg912A
Item : Mg912A
keyword : Mechanical Seal
Feature : Mechanical Seal
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components
are held togther by a snap ring in a unized construction design and can
be repaired easily on-site.



High Quality Mechanical Seals


Description:
mechanical seal,for blower pump, diving pump,
circulating pump, replace the mechanical seal
of Burgmann M9




Operations Conditions:
Temperature:-20ºC to +120ºC
Pressure:≤1.0MPa
Speed:≤15m/s
Materials:Stationary Ring:Ceramic(Alumina),Silicon Carbide  Reaction Bonded,Silicon Carbide   Sintered Pressureless,Ni-binder Tungsten Carbide
Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,Silicon Carbide  Sintered Pressureless,Silicon Carbide  Reaction Bonded Secondary Seal:Nitrile(NBR),Ethylene Propylene(EPDM),Fluorocarbon Rubber(Viton)
Spring and Metal Parts:Stainless Steel,Stainless Steel
Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids.




Operational Conditions:



Temperature:

 -20ºCto+180ºC

Pressure:

≤1.2MPa

Speed:

≤10m/s

Materials:



Stationary Ring:

B,Q2,U2

Rotary Ring:

Q2,U2,V1

Secondary Seal:

P,E,V

Spring and Metal Parts:

F,G

Applications:

Clean water, sewage water, oil And other moderately corrosive fluids





Mechanical Seal Burgmann Pump Mg912A
