Product name : High Quality Mechanical Seal 6
Item : 6
keyword : Mechanical Seal
Feature : Mechanical Seal
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

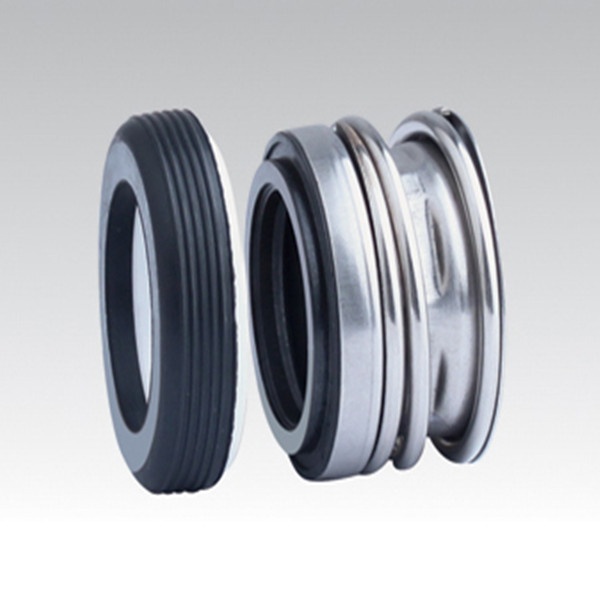

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components
are held togther by a snap ring in a unized construction design and can
be repaired easily on-site.



High Quality Mechanical Seals


Description:




1. Operational Conditions:
Temperature: -20ºC to +120ºC
Pressure: ≤1.0MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide
Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded
Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)Spring and Metal Parts: Stainless Steel, Stainless Steel
3. Seat Type:
Standard: JRCT20
Alternative: JRCT24, JRCG60
4. Applications: Clean Water, Sewage Water, Oil and other moderately corrosive fluids



Operational Conditions:



Temperature:

 -20ºCto+120ºC

Pressure:

≤2.5MPa

Speed:

≤15m/s

Materials:



Stationary Ring:

V1,Q2,Q1,U2,U1

Rotary Ring:

B,A,Q1,Q2,U1,U2

Secondary Seal:

P,E,V

Spring and Metal Parts:

F,G

Seat Type:



Standard:  JRCT20
Alternative: JRCT24, JRCG60

Applications:

Clean water, sewage water, Oil and other moderately corrosive fluids
